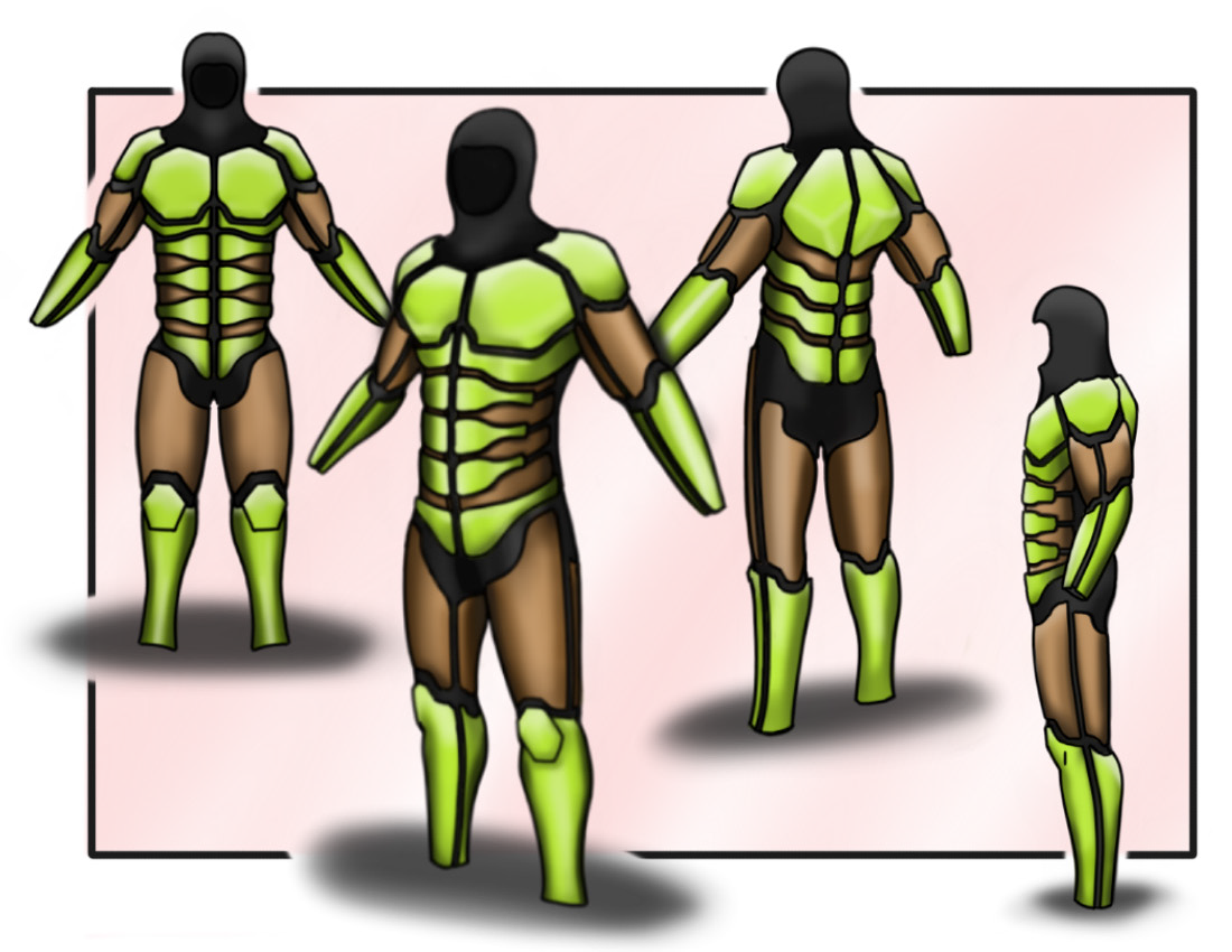

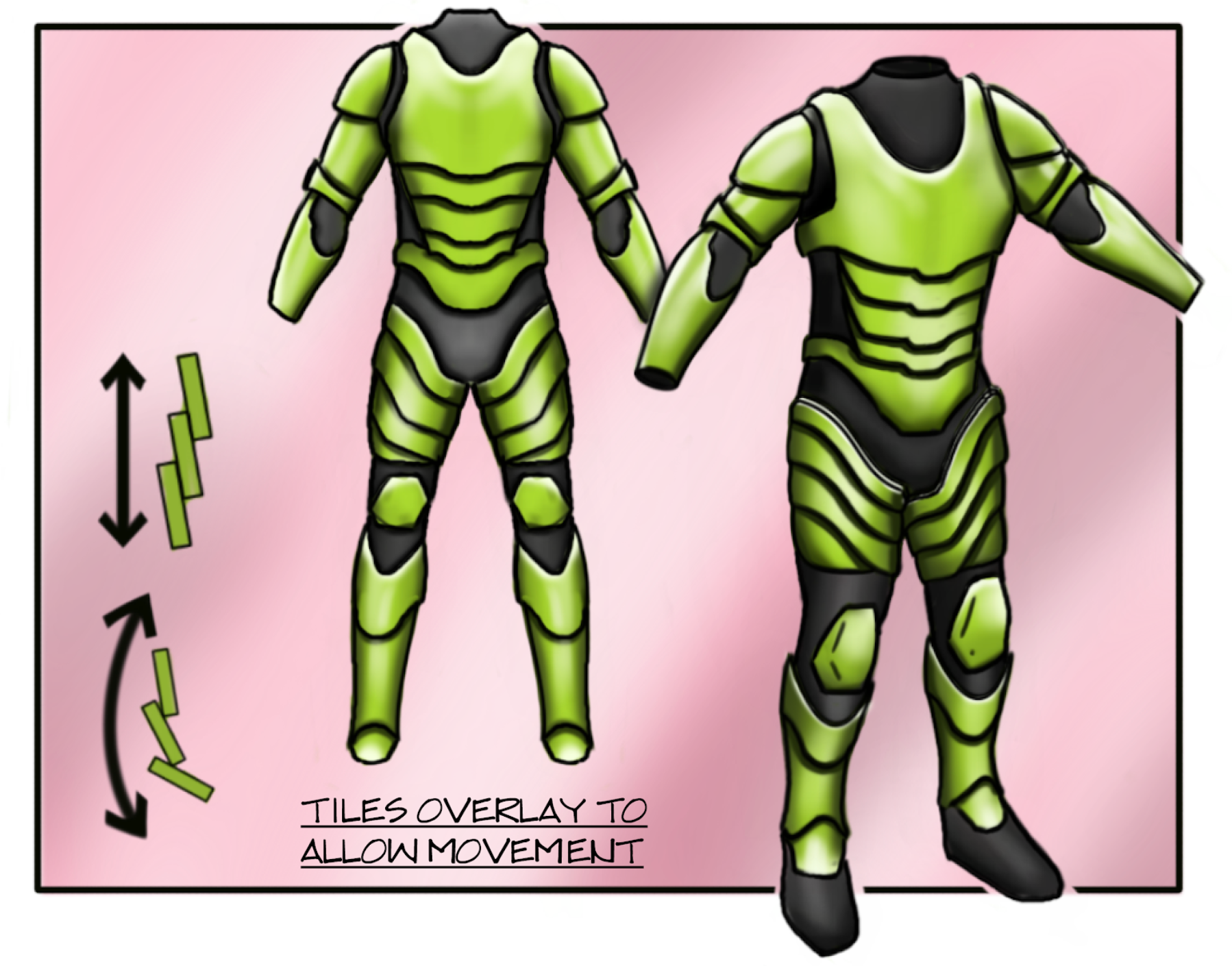

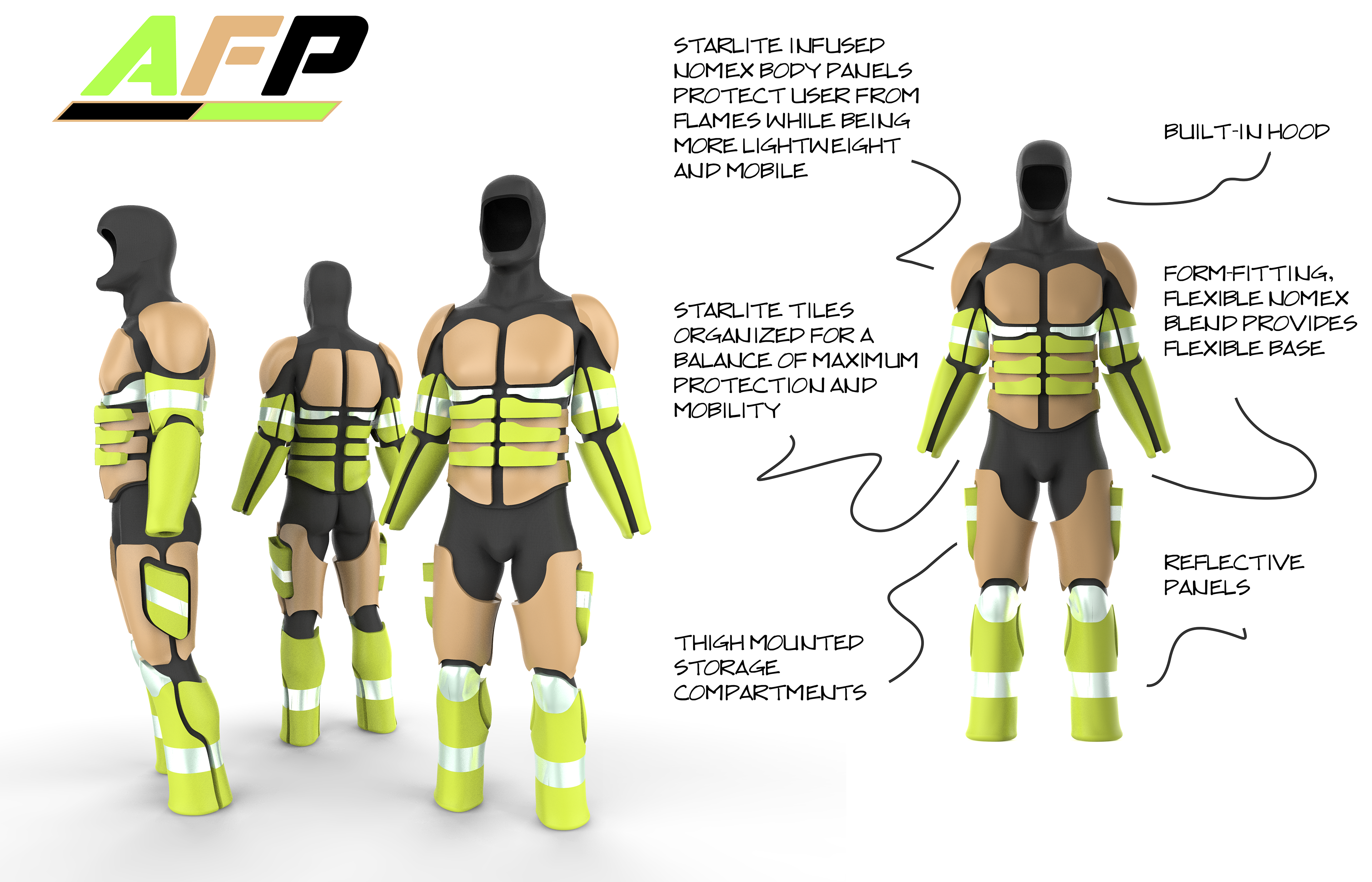

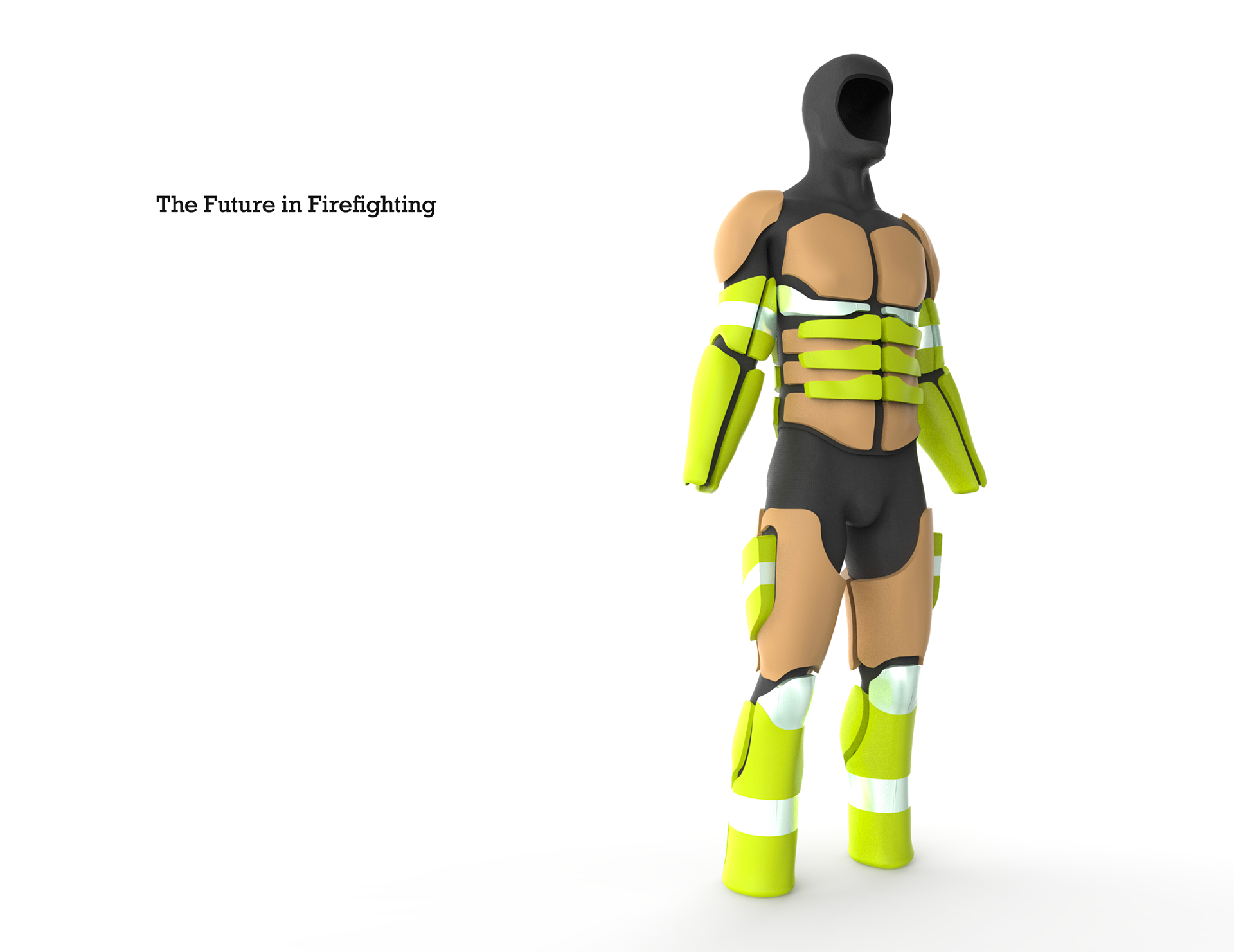

AFP (Advanced Fire Protection) is redesigned PPE for firefighters. The suit is comprised of starlite/nomex composite tiles, allowing the suit to be lighter, more mobile, and resist higher temperatures.
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/e2d5c99e-c946-4d06-aa28-85578d466e09_rw_1920.png?h=3784a2c4932e351c044f78f9c0bbecbe)
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/fe6797ff-27bd-4f8f-a0f8-56e6f0582acd_rw_1920.png?h=1ef4f632db9b7b7f2ba36b9254f98ed1)
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/b944985e-af77-46cf-bb2b-b7f4b20fd83a_rw_1920.png?h=82aa68bbaf21db78123ddee4aa5e10d3)
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/6ca85b82-a17b-443d-a806-4adc9bff5b77_rw_1920.png?h=fcf15656d8282777401a395e44a4a32d)
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/01b2b573-bf48-4968-b9b8-544f0dab99df_rw_1920.png?h=9ca9601aafa765df5da9aab6196a1ad6)
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/71b8bb91-4f24-4b9c-a672-504935ca78dc_rw_1920.png?h=e74dafc7dd654c978b9b7ff0cd6bba70)
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/be2ff6c5-32a0-4c09-ba92-9c0fa3350cf7_rw_1920.png?h=f43ac132af4dd9ddf960bf41359caaee)
The goal was to create a material to withstand extreme heat.
Some other goals I had were for the material to be lightweight, thin, cheap, and easy to make. I researched a material called Starlite. The material had amazing properties, but its ingredients were never released to the public. Even if they were, I wanted to create something that could withstand more physical abuse than traditional starlite. After much material exploration and experimentation, I created my own starlite mixture that led me closer to my desired goal. I then chose to create tiles by infusing my version of the material into a Nomex Honeycomb (another heat resistant material). The Nomex gives the tile structure, while the Starlite provides flame/heat protection.

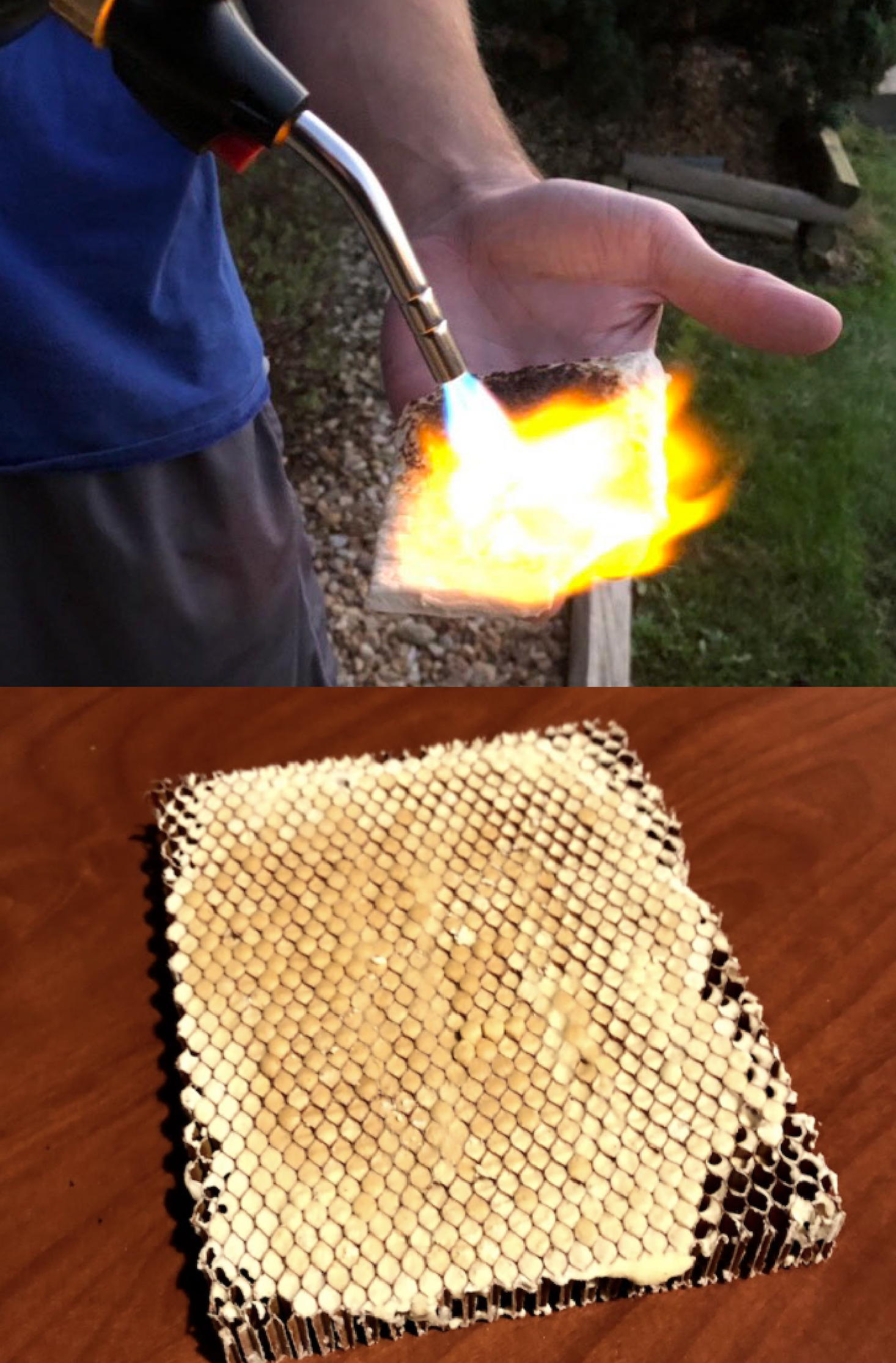

The tiles can withstand minutes of direct exposure to high temperature flames. All samples were tested with a propane torch, which reaches roughly 3,600 degrees Fahrenheit (for reference, most residential fires burn between 1,000 - 2,000 degrees F). All of this is accomplished by a tile that is less than ½” thick.
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/ce89b750-0b4b-4782-960b-e17609fc1a7a_rw_3840.png?h=9ad5decbe55537991cd533b64ecd65d9)
![](https://cdn.myportfolio.com/d9cf964798492ee17745d7baf0cd4a48/c3812eb2-6291-406a-81aa-d19c2baabcde_rw_1920.png?h=4316d50cdac4993e92ae4e4024d838f4)
